063383 | ERNI
D-Sub connector housing, size: 3 (DB), angled 15°, cable Ø 11 mm, PC, silver, 063383
Order No.: 55F3308
EAN: 4099889812893
MPN:
063383
Cable housings with integrated shielding plates for Sub-D connectors, type ERNI KSG 200.
Excellent EMI/RFI and ESD protection due to special inside shielding plates; Shielding attenuation: approx. 66 dB at 100 MHz, fully insulated plastic housing with plastic knurled screws, massive cable relief, simple mounting with snap-on locking.

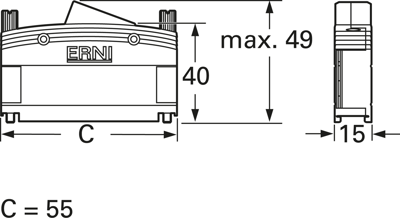

Technical attributes (type, number of poles, dimension C, for cable diameter, threaded knurled screw): 063383, 25–pole, 55.0 mm, 4.0 to 11 mm, M 3
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell size | 3 (DB) | |
| Cable Outlet | angled 15° | |
| Cable diameter | 11 mm | |
| Shell Material | PC | |
| Type of locking | knurled screw M3 | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SI |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
