154155 | ERNI

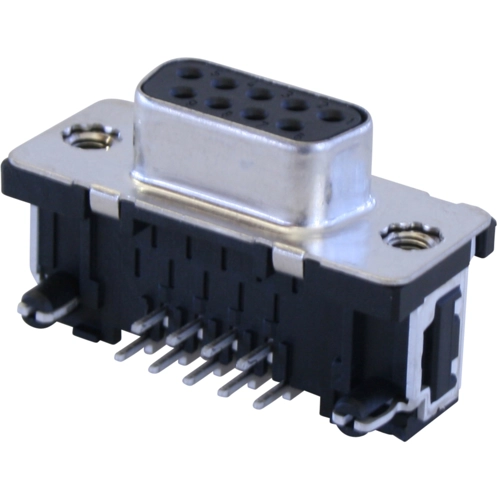

D-Sub socket, 9 pole, standard, equipped, angled, solder pin, 154155
Order No.: 51F9700
EAN: 4099889805482
MPN:
154155
This item is no longer available.
As an alternative, we recommend the following item:
D-Sub socket, 9 pole, standard, equipped, angled, solder pin, 09661566615
Order No.: 44F6164
Manufacturer: Harting
per pc. 4.1412 € *
THR D-Sub connector, type ERNI 154../174.
Angled and with an installation height of 3.6 mm (Euro style) or 7.3 mm (standard), for fully automatic handling with an integrated suction surface. Design compliant with DIN 41652 and CECC 75301-802; Insulator: high-temperature polymeric. Contacts: copper alloy. Surface contact insertion/connection area: gold-plated/tin. Air gaps and creepage distance: 1.2 mm. Front panel: piece/tin. Metal bracket: copper alloy/tin. Dimensions: 9-pole/A 30.8, B 16.8, C 25 mm, 15-pole/A 39.1, B 25.1, C 33.3 mm, 25-pole/A 53, B 38.9, C 47 mm, 37-pole/A 69.3, B 55.3, C 63.5 mm.
Multipole connectors, installation height 3.6 mm, type 154../174.
Technical attributes (type, number of poles, screw lock): 154155, 9-pole, M 3
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.74 mm | |
| Version | socket header | |
| Attachment (rear panel) | PCB locking | |
| Pin number | 9 pole | |
| Pole image | standard | |
| Additional parts | equipped | |
| Contact connection | solder pin | |
| Assembly | angled | |
| Type of locking | threaded insert M3 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
