154108 | ERNI

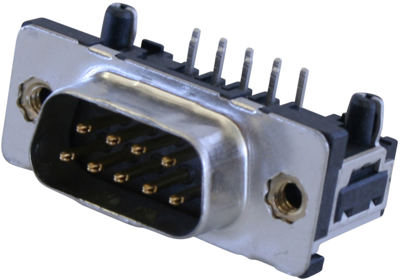

D-Sub plug, 9 pole, standard, equipped, angled, solder pin, 154108
Order No.: 51F9602
EAN: 4099889805475
MPN:
154108
This item is no longer available.
As an alternative, we recommend the following item:
D-Sub plug, 9 pole, standard, equipped, angled, solder pin, 09651666816
Order No.: 44F5803
Manufacturer: Harting
per pc. 3.6057 € *
THR D-Sub connector, type ERNI 154../174.
Angled and with an installation height of 3.6 mm (Euro style) or 7.3 mm (standard), for fully automatic handling with an integrated suction surface. Design compliant with DIN 41652 and CECC 75301-802; Insulator: high-temperature polymeric. Contacts: copper alloy. Surface contact insertion/connection area: gold-plated/tin. Air gaps and creepage distance: 1.2 mm. Front panel: piece/tin. Metal bracket: copper alloy/tin. Dimensions: 9-pole/A 30.8, B 16.8, C 25 mm, 15-pole/A 39.1, B 25.1, C 33.3 mm, 25-pole/A 53, B 38.9, C 47 mm, 37-pole/A 69.3, B 55.3, C 63.5 mm.
Pin headers, installation height 3.6 mm, type 154../174.
Technical attributes (type, number of poles, screw lock): 154108, 9-pole, 4-40 UNC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.74 mm | |
| Version | pin header | |
| Attachment (rear panel) | PCB locking | |
| Pin number | 9 pole | |
| Pole image | standard | |
| Additional parts | equipped | |
| Contact connection | solder pin | |
| Assembly | angled | |
| Type of locking | threaded insert 4-40 UNC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
