234064-E | ERNI

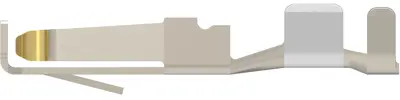

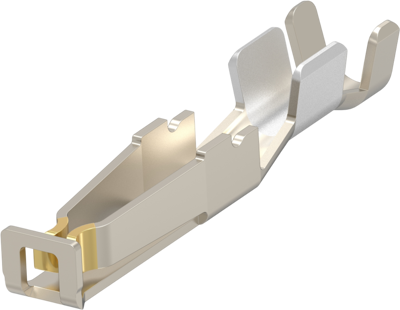

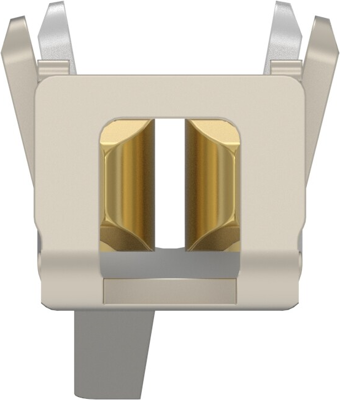

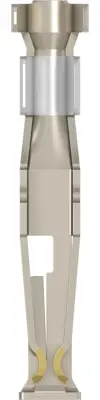

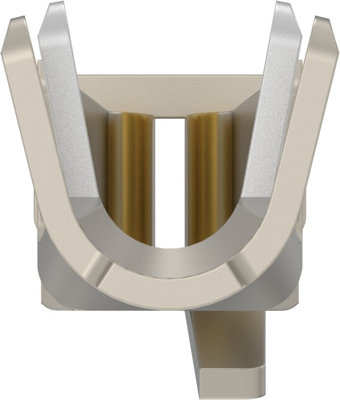

Receptacle, 0.14-0.56 mm², AWG 26-20, crimp connection, gold-plated, 234064-E
Order No.: 54F1551
MPN:
234064-E
Unit Price (€ / pc.)
1.2852 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.29 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2852 €
10 pcs.
1.1900 €
50 pcs.
1.1067 €
100 pcs.
1.0353 €
*incl. VAT plus shipping costs
Subject to prior sale
Signal, 234064-E, ERNI
Board-to-Board, Printed Circuit Board, Signal, -55 - 125 °C, Eurocard Connectors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| Contact connection | crimp connection | |
| Version | receptacle | |
| Contact material | copper alloy | |
| Insulation diameter | 1.5 mm | |
| Cable cross-section | 0.14-0.56 mm² | |
| AWG cross-section | AWG 26-20 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
