406-54180-51 | ept

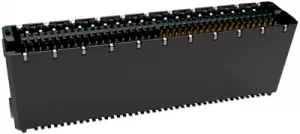

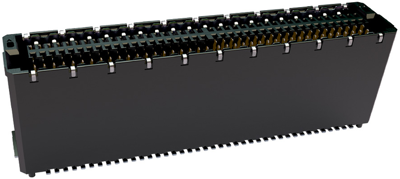

Socket header, 80 pole, pitch 0.8 mm, straight, black, 406-54180-51

Order No.: 52F924
EAN: 4099891715373
MPN:
406-54180-51
Series: Zero8
406-54180-51 ept PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
7.4375 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
7.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.4375 €

Socket connector, 406-54180-51, ept

The PCB connector system is processed using surface-mount technology (SMT) and is therefore soldered directly onto the circuit boards. This connector in 0.8 mm pitch ensures double contacting on a single pin and establishes high redundancy. As a result, the contact system ensures safe, robust and gas-tight contacting despite external influences such as shocks, vibrations, thermal cycles and noxious gas. The geometry of the insulating housing is also designed in such a way that the contacts are submerged in the insulating body.

Features

  • High density
  • High speed
  • Maximum contact reliability
  • Optimized protection against faulty connection

Applications

  • Board-to-board
  • Parallel and right-angled connections
Technical specifications
Filter Property Value
Colour black
contact surface gold-plated
Rated current 1.7 A
Grid 0.8 mm
Connection plating silver-plated
Pin number 80 pole
Version socket header
Additional parts equipped
Orientation straight
Connection SMD
Logistics
Property Value
Country of origin CN
Customs tariff number 85389099
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
