406-53180-51 | ept

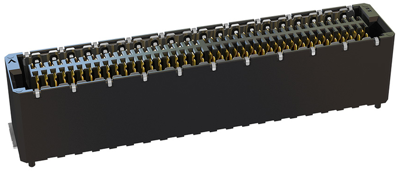

Socket header, 80 pole, pitch 0.8 mm, straight, black, 406-53180-51
Unit Price (€ / pc.)
10.8766 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
10.88 € *
Price list
Quantity
Price per unit*
1 pcs.
10.8766 €
10 pcs.
10.0079 €
50 pcs.
9.1035 €
100 pcs.
8.1991 €
*incl. VAT plus shipping costs
Subject to prior sale
SMT connector, 406-53180-51, EPT
0.8 mm shielded SMT Board-to-Board connector.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | silver-plated | |
| Connection | SMD | |
| Number of rows | 2 | |
| Colour | black | |
| contact surface | gold-plated | |
| Version | socket header | |
| Orientation | straight | |
| Additional parts | equipped | |
| Rated current | 1.7 A | |
| Pin number | 80 pole | |
| Grid | 0.8 mm | |
| Rated voltage | 500 V | |
| Contact type | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
