405-53152-51 | ept

Pin header, 52 pole, pitch 0.8 mm, straight, black, 405-53152-51

Order No.: 52F791
EAN: 4099889997989
MPN:
405-53152-51
Series: Zero8

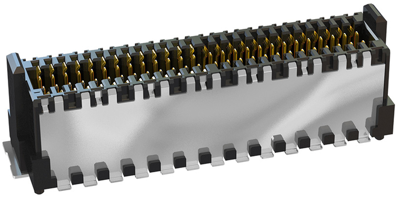

405-53152-51 ept PCB Connection Systems Image 1

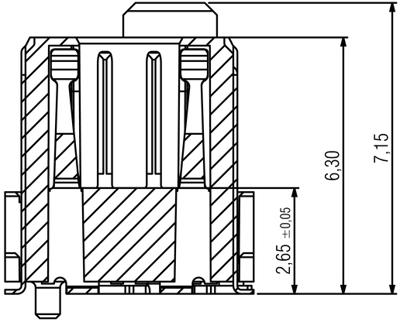

405-53152-51 ept PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
6.1404 € *
Available: 90 pcs.
Total Price:
6.14 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1404 €
10 pcs.
5.6525 €
50 pcs.
5.1408 €
100 pcs.
4.6291 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connector, 405-53152-51, ept

The PCB connector system is processed using surface-mount technology (SMT) and is therefore soldered directly onto the circuit boards. This connector in 0.8 mm pitch ensures double contacting on a single pin and establishes high redundancy. As a result, the contact system ensures safe, robust and gas-tight contacting despite external influences such as shocks, vibrations, thermal cycles and noxious gas. The geometry of the insulating housing is also designed in such a way that the contacts are submerged in the insulating body.

Features

  • High density
  • High speed
  • Maximum contact reliability
  • Optimized protection against faulty connection

Applications

  • Board-to-board
  • Parallel and right-angled connections
Technical specifications
Colour black
contact surface gold-plated
Rated current 1.7 A
Grid 0.8 mm
Connection plating silver-plated
Pin number 52 pole
Version pin header
Additional parts equipped
Orientation straight
Connection SMD
Contact type socket
Rated voltage 500 V
Number of rows 2
Logistics
Country of origin CN
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
