403-51016-51 | ept

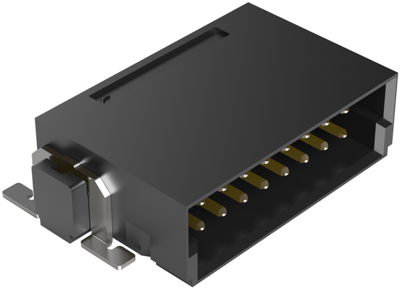

Pin header, 16 pole, pitch 1.27 mm, angled, black, 403-51016-51
Unit Price (€ / pc.)
2.4038 € *
Available: 5 pcs.
Total Price:
2.40 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4038 €
10 pcs.
2.2134 €
50 pcs.
2.0111 €
100 pcs.
1.8088 €
*incl. VAT plus shipping costs
Subject to prior sale
SMT connector, 403-51016-51, EPT
Pin header, low profile, board-to-board one27 male straight connector.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1.27 mm | |
| contact surface | gold-plated | |
| Contact type | pin | |
| Connection | SMD | |
| Rated voltage | 500 V | |
| Orientation | angled | |
| Number of rows | 2 | |
| Pin number | 16 pole | |
| Additional parts | equipped | |
| Colour | black | |
| Version | pin header | |
| Rated current | 1.4 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Original Packaging | Reel with 560 pieces |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
