402-51101-51 | ept

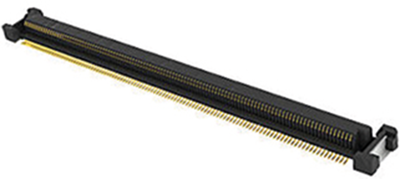

Female connector, type PICMG, 220 pole, pitch 0.5 mm, SMD, straight, gold-plated, 402-51101-51
Unit Price (€ / pc.)
6.2832 € *
Available: 330 pcs.
Total Price:
6.28 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2832 €
10 pcs.
5.7834 €
50 pcs.
5.2598 €
100 pcs.
4.7362 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 0.5 mm for COM Express, type ept Colibri.
Double-row shielded PCB connection system with SMT technology. Compliant with requirements to PICMG COM Express, SFF-SIG Core Express and nanoETXexpress; Operating voltage: 50 VAC. Operating current: max. 0.5 A. Transmission rate: 5.0 Gbps. Insulation resistance: min. 100 Mohm. Contact resistance: max. 75 mohm. Test voltage: 200 VAC. Useful life: 30 insertion/removal cycles. Operating temperatures: –40 to +85 °C. Grid: 0.5 mm.
Federleisten / COM-Modul.
Type: 402-51101-51, 220-polig
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | SMD | |
| Pin number | 220 pole | |
| Contact type | socket | |
| Orientation | straight | |
| Design | PICMG | |
| contact surface | gold-plated | |
| Rated current | 500 mA | |
| Grid | 0.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
