401-51501-51 | ept

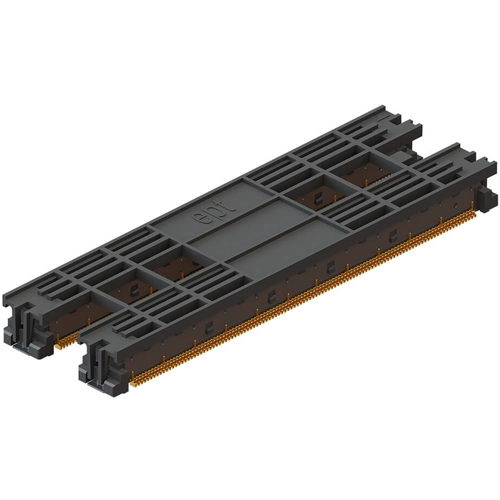

Male connector, type PICMG, 440 pole, pitch 0.5 mm, SMD, straight, gold-plated, 401-51501-51
Order No.: 52F7314
EAN: 4099891022037
MPN:
401-51501-51
Unit Price (€ / pc.)
11.5192 € *
Standard delivery time from the manufacturer is: On Request
Male connector, 0.5 mm for COM Express, type ept Colibri.
Double-row shielded PCB connection system with SMT technology. Compliant with requirements to PICMG COM Express, SFF-SIG Core Express and nanoETXexpress; Operating voltage: 50 VAC. Operating current: max. 0.5 A. Transmission rate: 5.0 Gbps. Insulation resistance: min. 100 Mohm. Contact resistance: max. 75 mohm. Test voltage: 200 VAC. Useful life: 30 insertion/removal cycles. Operating temperatures: –40 to +85 °C. Grid: 0.5 mm.
Messerleisten / Base Board.
Type: 401-51501-51, 440-pole, 5,0 mm Printed circuit board spacing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| Rated current | 500 mA | |
| Grid | 0.5 mm | |
| Pin number | 440 pole | |
| Design | PICMG | |
| Orientation | straight | |
| Connection | SMD | |
| Contact type | pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
