401-51101-51 | ept

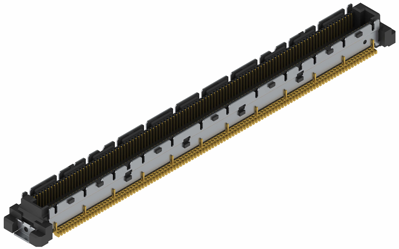

Male connector, type PICMG, 220 pole, pitch 0.5 mm, SMD, straight, gold-plated, 401-51101-51
Order No.: 52F7312
EAN: 4099891022020
MPN:
401-51101-51
Unit Price (€ / pc.)
6.8544 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
6.85 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8544 €
10 pcs.
6.3665 €
50 pcs.
5.8667 €
100 pcs.
5.3312 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 0.5 mm for COM Express, type ept Colibri.
Double-row shielded PCB connection system with SMT technology. Compliant with requirements to PICMG COM Express, SFF-SIG Core Express and nanoETXexpress; Operating voltage: 50 VAC. Operating current: max. 0.5 A. Transmission rate: 5.0 Gbps. Insulation resistance: min. 100 Mohm. Contact resistance: max. 75 mohm. Test voltage: 200 VAC. Useful life: 30 insertion/removal cycles. Operating temperatures: –40 to +85 °C. Grid: 0.5 mm.
Messerleisten / Base Board.
Type: 401-51101-51, 220-pole, 5,0 mm Printed circuit board spacing
Technical specifications
| Contact type | pin | |
| Connection | SMD | |
| Pin number | 220 pole | |
| Rated current | 500 mA | |
| contact surface | gold-plated | |
| Grid | 0.5 mm | |
| Design | PICMG | |
| Orientation | straight |
Download
Logistics
| Customs tariff number | 85389099 |
| Country of origin | CN |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
