304-40054-05TH | ept

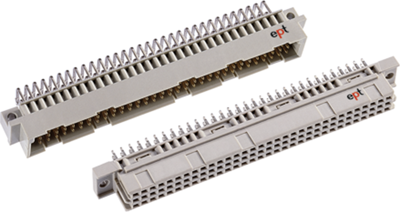

Female connector, type C, 64 pole, a-c, pitch 2.54 mm, solder pin, straight, 304-40054-05TH
Order No.: 52F7061
EAN: 4099891021085
MPN:
304-40054-05TH
Unit Price (€ / pc.)
2.2491 € *
Standard delivery time from the manufacturer is: 5 Weeks
Female connector DIN 41612/IEC 60603-2, type ept.
Requirements class 2; Quality class to DIN EN 60603-2: II/400 insertion/removal cycles. Insulation resistance: min. 1000 Gohm. Spring contact: double, double spring, two-sided. Insulator: PBTP, glass fiber-reinforced (UL 94 V-0), PC, glass fiber-reinforced (UL 94 V-1). Operating temperatures: –55 to +125 °C (design H = –65 to +125 °C). Certifications: UL.
Straight feFemale connector C, in THTR.
Process temperature: 260 °C to J-STD-020D.
Technical attributes (type, number of poles, contact row assignments, overall length): 304-40054-05TH, 64-pole, a-c, 2.5 mm, 94.9 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 1.5 A | |
| Performance level | 2 | |
| Contact row assignment | a-c | |
| Contact type | socket | |
| Grid | 2.54 mm | |
| Orientation | straight | |
| Design | C | |
| Connection | solder pin | |
| Pin number | 64 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
