114-40090 | ept

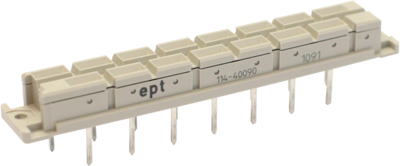

Female connector, type H15, 15 pole, z-d, pitch 5.08 mm, wire-wrap, straight, 114-40090
Order No.: 52F7278
EAN: 4099891021979
MPN:
114-40090
Unit Price (€ / pc.)
14.4228 € *
Next delivery: 14 pcs. on 2025-06-30
Total Price:
14.42 € *
Price list
Quantity
Price per unit*
1 pcs.
14.4228 €
10 pcs.
13.2685 €
25 pcs.
12.1975 €
50 pcs.
11.1027 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector DIN 41612/IEC 60603-2, type ept.
Requirements class 2; Quality class to DIN EN 60603-2: II/400 insertion/removal cycles. Insulation resistance: min. 1000 Gohm. Spring contact: double, double spring, two-sided. Insulator: PBTP, glass fiber-reinforced (UL 94 V-0), PC, glass fiber-reinforced (UL 94 V-1). Operating temperatures: –55 to +125 °C (design H = –65 to +125 °C). UL.
FeFemale connector H15, straight, flat design, with solder pins.
Connection length type 114-40080/114-40090: 4.0/13 mm. Pin: 0.6 x 1.2 mm.
Technical attributes (type, number of poles, contact row assignments, overall length): 114–40090, 15–pole, 94.8 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | H15 | |
| Connection | wire-wrap | |
| Contact row assignment | z-d | |
| Grid | 5.08 mm | |
| Orientation | straight | |
| Performance level | 2 | |
| Contact type | socket | |
| Pin number | 15 pole | |
| Rated current | 15 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
