109-40064 | ept

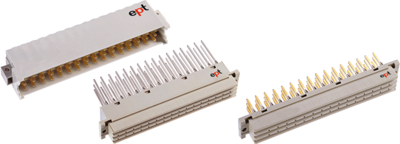

Male connector, type F, 48 pole, z-b-d, pitch 5.08 mm, solder pin, angled, 109-40064
Order No.: 52F7204
EAN: 4099891021689
MPN:
109-40064
Unit Price (€ / pc.)
4.0460 € *
Available: 17 pcs.
Total Price:
4.05 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0460 €
10 pcs.
3.5700 €
100 pcs.
3.1416 €
250 pcs.
3.0107 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector DIN 41612/IEC 60603-2, type ept.
Requirements class 2; Quality class to DIN EN 60603-2: II/400 insertion/removal cycles. Insulation resistance: min. 1000 Gohm. Spring contact: double, double spring, two-sided. Insulator: PBTP, glass fiber-reinforced (UL 94 V-0), PC, glass fiber-reinforced (UL 94 V-1). Operating temperatures: –55 to +125 °C (design H = –65 to +125 °C). Certifications: UL.
Male connector F, 90°, with solder pins.
For 1.6 mm holes; Maximum operating current at 20 °C: 5.6 A. Contact resistance: max. 15 mohm. Grid: 5.08 mm.
Technical attributes (type, number of poles, contact row assignments, overall length): 109-40064, 48-pole, z-b-d, 3.0 mm, 94 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 5.6 A | |
| Performance level | 2 | |
| Contact row assignment | z-b-d | |
| Contact type | pin | |
| Grid | 5.08 mm | |
| Orientation | angled | |
| Design | F | |
| Connection | solder pin | |
| Pin number | 48 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
