109-40025 | ept

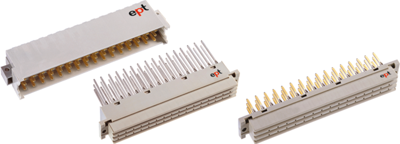

Male connector, type F, 32 pole, z-b, pitch 5.08 mm, solder pin, straight, 109-40025
Order No.: 52F7208
EAN: 4099891021702
MPN:
109-40025
Unit Price (€ / pc.)
2.499 € *
Standard delivery time from the manufacturer is: 10 Weeks
Male connector DIN 41612/IEC 60603-2, type ept.
Requirements class 2; Quality class to DIN EN 60603-2: II/400 insertion/removal cycles. Insulation resistance: min. 1000 Gohm. Spring contact: double, double spring, two-sided. Insulator: PBTP, glass fiber-reinforced (UL 94 V-0), PC, glass fiber-reinforced (UL 94 V-1). Operating temperatures: –55 to +125 °C (design H = –65 to +125 °C). Certifications: UL.
Male connector F, 180°, with solder pins.
Technical attributes (type, number of poles, contact row assignments, overall length): 109-40025, 32-pole, z-b, 3.0 mm, 94 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 5.6 A | |
| Performance level | 2 | |
| Contact row assignment | z-b | |
| Contact type | pin | |
| Grid | 5.08 mm | |
| Orientation | straight | |
| Design | F | |
| Connection | solder pin | |
| Pin number | 32 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
