108-40076 | ept

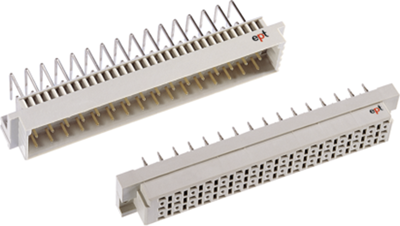

Female connector, type E, 48 pole, a-c-e, pitch 5.08 mm, solder lug, straight, 108-40076
Order No.: 52F7180
EAN: 4099891021658
MPN:
108-40076
Unit Price (€ / pc.)
8.5680 € *
Available: 7 pcs.
Total Price:
8.57 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5680 €
10 pcs.
7.8778 €
50 pcs.
7.1638 €
100 pcs.
6.4498 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector DIN 41612/IEC 60603-2, type ept.
Requirements class 2; Quality class to DIN EN 60603-2: II/400 insertion/removal cycles. Insulation resistance: min. 1000 Gohm. Spring contact: double, double spring, two-sided. Insulator: PBTP, glass fiber-reinforced (UL 94 V-0), PC, glass fiber-reinforced (UL 94 V-1). Operating temperatures: –55 to +125 °C (design H = –65 to +125 °C). Certifications: UL.
FeFemale connector E, straight, with solder lugs.
Technical attributes (type, number of poles, contact row assignments, overall length): 108-40076, 48-pole, a-c-e, 11 mm, 94.9 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 5.6 A | |
| Performance level | 2 | |
| Contact row assignment | a-c-e | |
| Contact type | socket | |
| Grid | 5.08 mm | |
| Orientation | straight | |
| Design | E | |
| Connection | solder lug | |
| Pin number | 48 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
