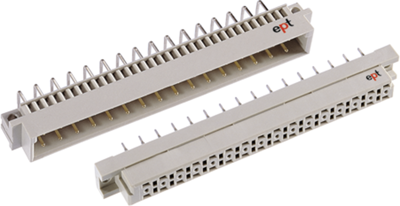

Male connector, type D, 32 pole, a-c, pitch 5.08 mm, solder pin, angled, 105-40064

Order No.:  52F7160
MPN:
105-40064
EAN: 4099891021559
ept
default L
default S
Images may differ
Unit Price (€ / pc.)
2.3086 € *
Available: 243 pcs.
Leadtime: 5 Weeks **
Total Price:
2.31 € *
Quantity
Price per unit*
1 pcs.
2.3086 €
25 pcs.
1.9754 €
100 pcs.
1.8088 €
250 pcs.
1.7136 €
1000 pcs.
1.5589 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description

Male connector DIN 41612/IEC 60603-2, type ept.

Requirements class 2; Quality class to DIN EN 60603-2: II/400 insertion/removal cycles. Insulation resistance: min. 1000 Gohm. Spring contact: double, double spring, two-sided. Insulator: PBTP, glass fiber-reinforced (UL 94 V-0), PC, glass fiber-reinforced (UL 94 V-1). Operating temperatures: –55 to +125 °C (design H = –65 to +125 °C). Certifications: UL.

Male connector D, angled, with solder pins.

For 1.6 mm holes; Maximum operating current at 20 °C: 5.6 A. Contact resistance: max. 15 mohm. Grid: 5.08 mm.

Technical attributes (type, number of poles, contact row assignments, overall length): 105-40064, 32-pole, a-c, 3.0 mm, 94 mm

Technical specifications
Performance level 2
Connection solder pin
Design D
Contact type pin
Contact row assignment a-c
Rated current 5 A
Orientation angled
Pin number 32 pole
Grid 5.08 mm
Show similar products (0)
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
