103-40065 | ept

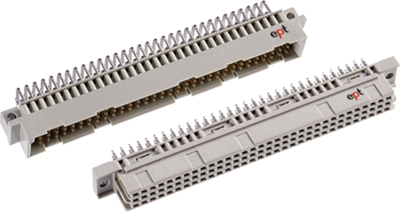

Male connector, type C, 96 pole, a-b-c, pitch 2.54 mm, solder pin, straight, 103-40065
Order No.: 52F7034
EAN: 4099891020910
MPN:
103-40065
Unit Price (€ / pc.)
3.3082 € *
Available: 11 pcs.
Total Price:
3.31 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3082 €
10 pcs.
3.0345 €
50 pcs.
2.7608 €
100 pcs.
2.4871 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector DIN 41612/IEC 60603-2, type ept.
Requirements class 2; Quality class to DIN EN 60603-2: II/400 insertion/removal cycles. Insulation resistance: min. 1000 Gohm. Spring contact: double, double spring, two-sided. Insulator: PBTP, glass fiber-reinforced (UL 94 V-0), PC, glass fiber-reinforced (UL 94 V-1). Operating temperatures: –55 to +125 °C (design H = –65 to +125 °C). Certifications: UL.
Male connector C, straight, with solder pins.
For 1.0 mm holes; Maximum operating current at 20 °C: 1.5 A. Contact resistance: max. 20 mohm. Grid: 2.54 mm.
Technical attributes (type, number of poles, contact row assignments, overall length): 103-40065, 96-pole, a-b-c, 3.0 mm, 94 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Performance level | 2 | |
| Orientation | straight | |
| Design | C | |
| Contact type | pin | |
| Rated current | 1.5 A | |
| Contact row assignment | a-b-c | |
| Pin number | 96 pole | |
| Connection | solder pin | |
| Grid | 2.54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
