103-40014TH | ept

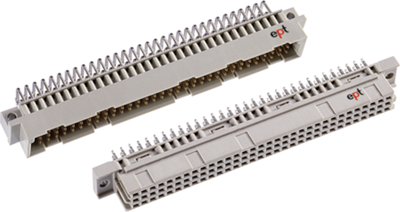

Male connector, type C, 32 pole, a-c, pitch 2.54 mm, solder pin, angled, 103-40014TH
Order No.: 52F7041
EAN: 4099891020958
MPN:
103-40014TH
Unit Price (€ / pc.)
2.5942 € *
Available: 44 pcs.
Total Price:
2.59 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5942 €
10 pcs.
2.4038 €
50 pcs.
2.1777 €
100 pcs.
1.9635 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector DIN 41612/IEC 60603-2, type ept.
Requirements class 2; Quality class to DIN EN 60603-2: II/400 insertion/removal cycles. Insulation resistance: min. 1000 Gohm. Spring contact: double, double spring, two-sided. Insulator: PBTP, glass fiber-reinforced (UL 94 V-0), PC, glass fiber-reinforced (UL 94 V-1). Operating temperatures: –55 to +125 °C (design H = –65 to +125 °C). Certifications: UL.
Male connector C, angled, in THTR.
Process temperature: 260 °C to J-STD-020D.
Technical attributes (type, number of poles, contact row assignments, overall length): 103-40014TH, 32-pole, a-c, 3.0 mm, 94 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 1.5 A | |
| Performance level | 2 | |
| Contact row assignment | a-c | |
| Contact type | pin | |
| Grid | 2.54 mm | |
| Orientation | angled | |
| Design | C | |
| Connection | solder pin | |
| Pin number | 32 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
