X1E000251001412 | Epson

Name: Crystal, 26 MHz, 9 pF, ±10 ppm, 200 Ω, SMD, X1E000251001412
Brand: Epson
SKU: 77D643
Availability: InStock

Crystal, 26 MHz, 9 pF, ±10 ppm, 200 Ω, SMD, X1E000251001412

Order No.: 77D643

EAN: 4099879148261

MPN:

X1E000251001412

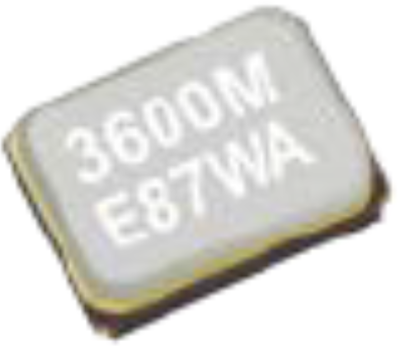

Image may differ

Key Specification:

Frequency 26 MHz

Frequency stability +/-30

Tolerance ±10 ppm

Load Capacity 9 pF

ESR (Equivalent Series Resistance) 200 Ω

Unit Price (€ / pc.)

0.3689 € *

Standard delivery time from the manufacturer is: On Request

Total Price:

1,106.70 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Crystal FA-118T 26,000000MHz 9pF, 10ppm.

Technical specifications

Filter	Property	Value
	Frequency	26 MHz
	Frequency stability	+/-30
	Tolerance	±10 ppm
	Load Capacity	9 pF
	ESR (Equivalent Series Resistance)	200 Ω
	Assembly	SMD

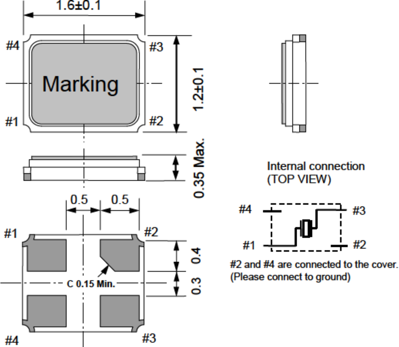

	Length	1.6 mm
	Width	1.2 mm
	Height	0.35 mm
	min. operating temperature	-40 °C
	max. operating temperature	85 °C
	Number of connection pads	4
