Q22FA1280038712 | Epson

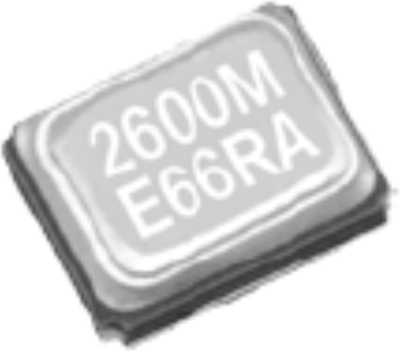

Crystal, 24 MHz, 12 pF, ±10 ppm, 80 Ω, SMD, Q22FA1280038712
Order No.: 77D637
EAN: 4099879148230
MPN:
Q22FA1280038712
Unit Price (€ / pc.)
0.4403 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
110.08 € *
Price list
Quantity
Price per unit*
250 pcs.
0.4403 €
1000 pcs.
0.4046 €
2000 pcs.
0.3808 €
3000 pcs.
0.3451 €
*incl. VAT plus shipping costs
Subject to prior sale
Crystal, Q22FA1280038712, Epson
Crystal FA-128 24,000000MHz 12pF, 10ppm.

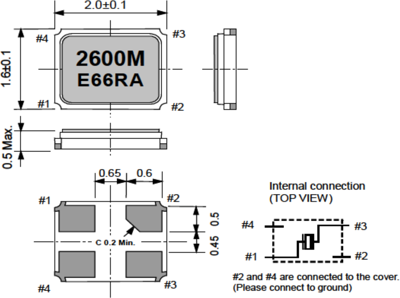

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Frequency | 24 MHz | |
| Frequency stability | +/-30 | |
| Tolerance | ±10 ppm | |
| Load Capacity | 12 pF | |
| ESR (Equivalent Series Resistance) | 80 Ω | |
| Assembly | SMD | |
| Length | 2 mm | |
| Width | 1.6 mm | |
| Height | 0.5 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Number of connection pads | 4 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Reel with 250 pieces |
| Customs tariff number | 85416000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
