X1G004171002712 | Epson

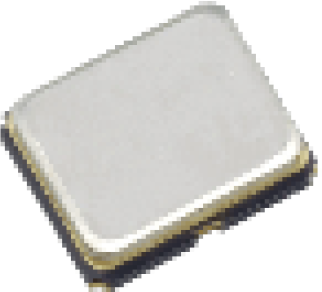

Crystal oscillator, 16 MHz, ±50 ppm, 15 pF, SMD, (L x W x H) 2.5 x 2 x 0.8 mm, X1G004171002712
Unit Price (€ / pc.)
0.6902 € *
Standard delivery time from the manufacturer is: 16 Weeks
Oscillator, X1G004171002712, Epson
Oscillator SG-210STF, 16,000000MHz.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| nominal frequency | 16 MHz | |
| Frequency stability | ±50 ppm | |
| Assembly | SMD | |

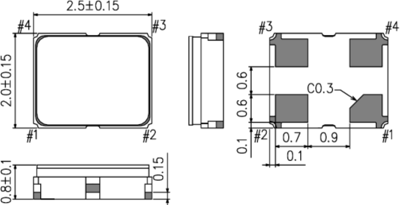

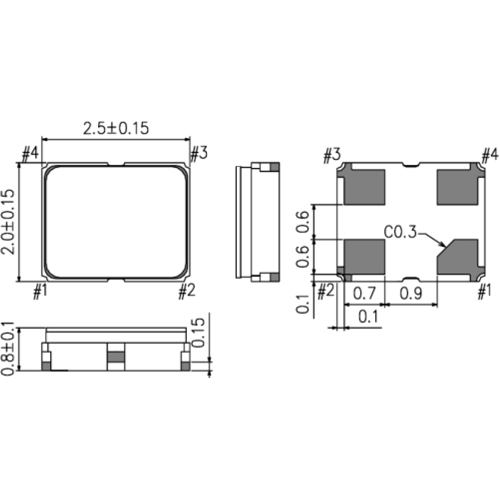

| Length | 2.5 mm | |
| Width | 2 mm | |
| Height | 0.8 mm | |
| Capacity | 15 pF | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85416000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 250 pieces |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
