19.03201.01 | EOZ
Slide switch, On-On, 1 pole, straight, 500 mA/24 VDC, 19.03201.01
Unit Price (€ / pc.)
4.0817 € *
Standard delivery time from the manufacturer is: 5 Weeks

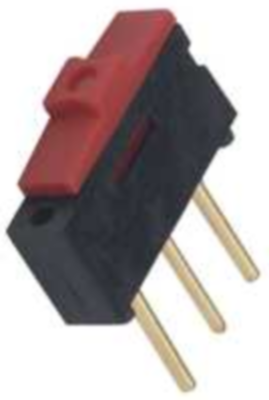

Slide switch, 19.03201.01, EOZ
The 19.03201.01 slide switch is recommended for all PCB applications, it is ideal as a jumper replacement. The slide actuator gives instant recognition of switch position.
Features
- Electrical life 1000 operations
- Cursor position
- Resistance to wave soldering at 250° C, 5 sec
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shift position | On-On | |
| Actuation | on top | |
| Breaking capacity | 500 mA/24 VDC | |
| Pin number | 1 pole | |
| contact surface | gold-plated | |
| Connection | PCB pin | |
| Grid | 5.08 mm | |
| Design | straight | |
| Version | slide switch |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
