09.03201.02 | EOZ

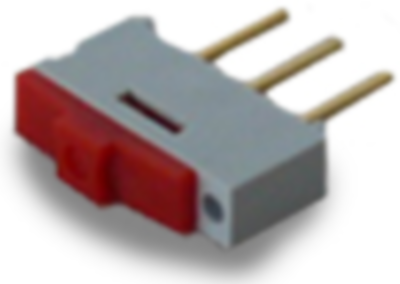

Slide switch, On-On, 1 pole, straight, 500 mA/24 VDC, 09.03201.02
Unit Price (€ / pc.)
1.3566 € *
Available: 357 pcs.
Total Price:
1.36 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3566 €
25 pcs.
1.1543 €
100 pcs.
1.0710 €
250 pcs.
1.0234 €
1000 pcs.
0.9282 €
*incl. VAT plus shipping costs
Subject to prior sale
Slide switch, 09.03201.02, EOZ
The 09.03201.02 slide switch is recommended for all PCB applications, it is ideal as a jumper replacement. The slide actuator gives instant recognition of switch position.
Features
- Electrical life 1000 operations
- Cursor position
- Resistance to wave soldering at 250° C, 5 sec
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| Shift position | On-On | |
| Breaking capacity | 500 mA/24 VDC | |
| Grid | 5.08 mm | |
| Design | straight | |
| Connection | PCB pin | |
| Pin number | 1 pole | |
| Version | slide switch | |
| Actuation | on top |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
