17.17851.30 | EOZ

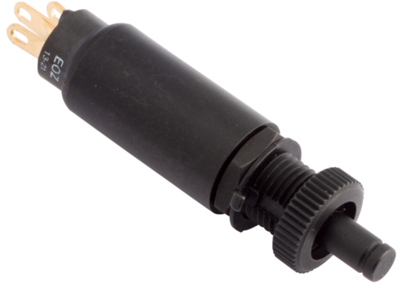

Pushbutton, 1 pole, black, unlit , 4.5 A/12 V, mounting Ø 6 mm, IP65, 17.17851.30
Unit Price (€ / pc.)
80.9795 € *
Standard delivery time from the manufacturer is: 5 Weeks
Push button, 1-polig, Installation diameter: 6.35 mm, Contact: Tropical gold, Functiion: ON-MOM, Design: Black mat, Electrical life: 100.000 operations.
Electrical: Specifications:
Operating Voltage: Tropicao gold contacts 10 mV , 100 µA
Switch rating: 220 V - 1,5 A, 110 V - 2,5 A, 48 V - 1 A, 24 V - 2,25 A, 12 V - 4,5 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| illuminated | No | |
| Protection class | IP65 | |
| Latching switching function | groping | |
| Breaking capacity | 4.5 A/12 V | |
| Installation diameter | 6 mm | |
| Vandal-proof | No | |
| Design | round | |
| Actuator colour | black | |
| Connection | solder connection | |
| Pin number | 1 pole | |
| Printed | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
