1SNK705022R0000 | ENTRELEC

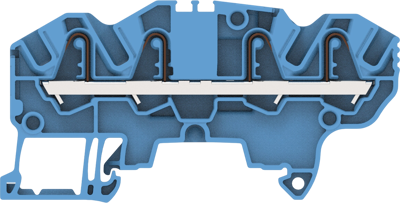

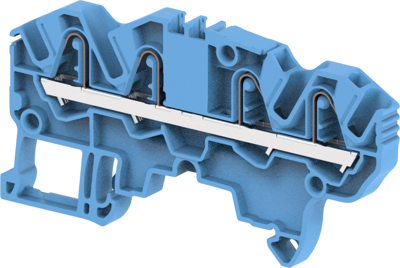

Feed through terminal, spring-clamp connection, 0.2-4.0 mm², 4 pole, 24 A, 8 kV, blue, 1SNK705022R0000
Order No.: 72P4390
MPN:
1SNK705022R0000
Unit Price (€ / pc.)
2.1658 € *
Available in 5 Days: 562 pcs. - if ordered today
Total Price:
10.83 € *
Price list
Quantity
Price per unit*
5 pcs.
2.1658 €
10 pcs.
2.0111 €
25 pcs.
1.8683 €
50 pcs.
1.6898 €
*incl. VAT plus shipping costs
Subject to prior sale
DIN Rail terminal block, 1SNK705022R0000, ENTRELEC
PI-Spring Terminal Block, Feed-Through, Blue, 5.2 mm Spacing, 4 Position, Spring Terminal, Power und Signal, DIN Rail, 600 VAC, ENTRELEC SNK.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Cable cross-section | 0.2-4.0 mm² | |
| Colour | blue | |
| Rated current | 24 A | |
| Number of terminals | 1 | |
| Connection | spring-clamp connection | |
| Height | 80.2 mm | |
| AWG cross-section | AWG 26 to 12 | |
| Rated surge voltage | 8 kV | |
| Length | 40.2 mm | |
| Rated Voltage | 1000 V | |
| Version | feed through terminal |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
