1SNK705021R0000 | ENTRELEC

Feed through terminal, spring-clamp connection, 0.2-4.0 mm², 3 pole, 24 A, 8 kV, blue, 1SNK705021R0000

Order No.: 72P4393
MPN:
1SNK705021R0000
1SNK705021R0000 ENTRELEC Series Terminals Image 1

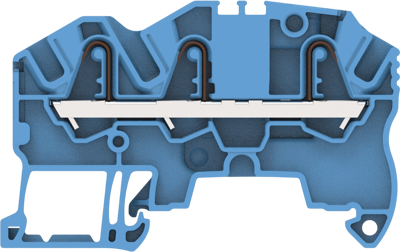

1SNK705021R0000 ENTRELEC Series Terminals Image 2

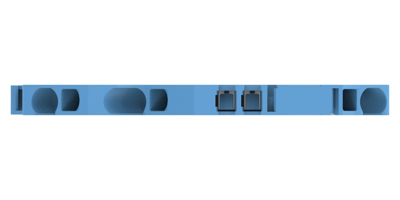

1SNK705021R0000 ENTRELEC Series Terminals Image 3

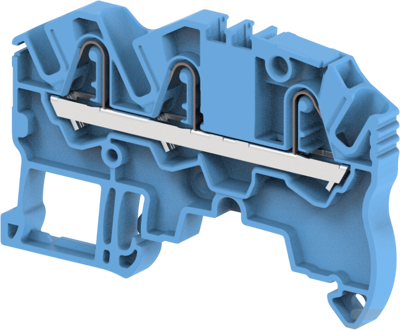

1SNK705021R0000 ENTRELEC Series Terminals Image 4

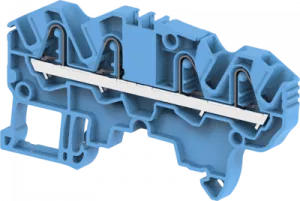

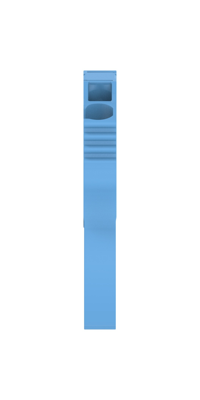

1SNK705021R0000 ENTRELEC Series Terminals Image 5
Image may differ
Unit Price (€ / pc.)
1.6898 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
1.69 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6898 €
10 pcs.
1.5589 €
50 pcs.
1.4399 €
100 pcs.
1.3447 €
*incl. VAT plus shipping costs
Subject to prior sale

DIN Rail terminal block, 1SNK705021R0000, ENTRELEC

PI-Spring Terminal Block, Feed-Through, Blue, 5.2 mm Spacing, 3 Position, DIN Rail, -55 - 110 °C, ENTRELEC SNK.

Technical specifications
Pin number 3 pole
Version feed through terminal
AWG cross-section AWG 26 to 12
Cable cross-section 0.2-4.0 mm²
Rated Voltage 1000 V
Number of terminals 1
Connection spring-clamp connection
Height 64.7 mm
Rated surge voltage 8 kV
Length 40.2 mm
Colour blue
Rated current 24 A
Logistics
Customs tariff number 85369010
Country of origin PL
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
