1SNK526010R0000 | ENTRELEC

Feed through terminal, screw connection, 35-120 mm², 2 pole, 232 A, 8 kV, gray, 1SNK526010R0000

Order No.: 72P4449
MPN:
1SNK526010R0000

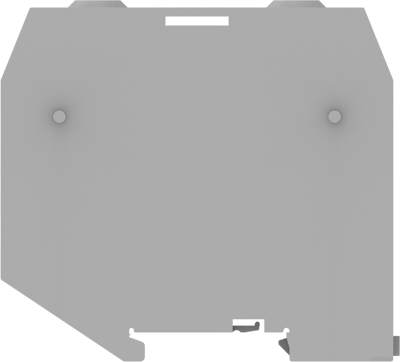

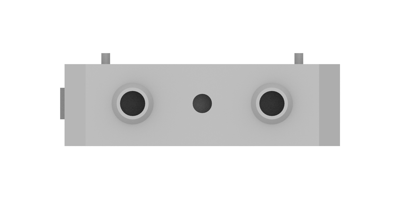

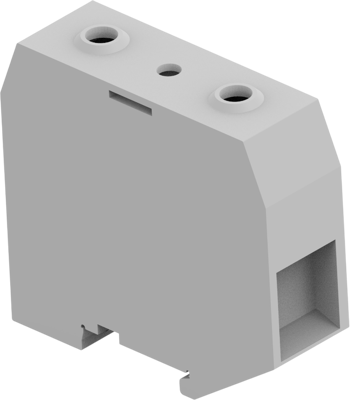

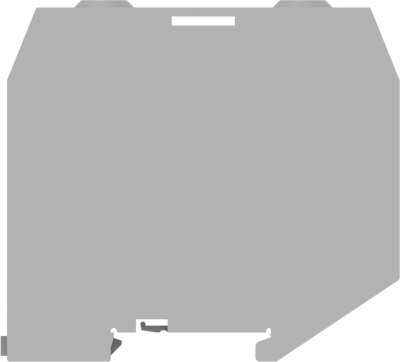

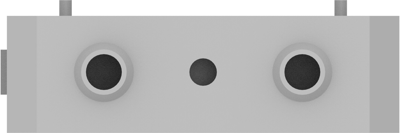

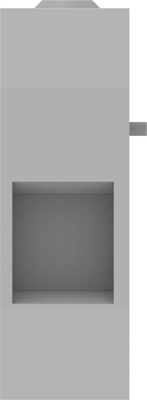

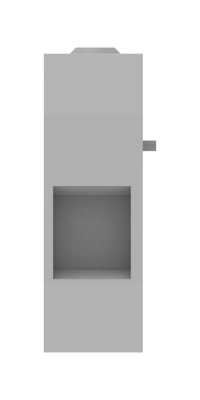

1SNK526010R0000 ENTRELEC Series Terminals Image 1
1SNK526010R0000 ENTRELEC Series Terminals Image 2
1SNK526010R0000 ENTRELEC Series Terminals Image 3
1SNK526010R0000 ENTRELEC Series Terminals Image 4
1SNK526010R0000 ENTRELEC Series Terminals Image 5
Image may differ
Unit Price (€ / pc.)
39.8055 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
39.81 € *
Price list
Quantity
Price per unit*
1 pcs.
39.8055 €
5 pcs.
38.0443 €
10 pcs.
36.4378 €
25 pcs.
34.9622 €
*incl. VAT plus shipping costs
Subject to prior sale

DIN Rail terminal block, 1SNK526010R0000, ENTRELEC

Screw Clamp Terminal Block, Feed-Through, Gray, 26 mm Spacing, 2 Position, Screw Terminal, Power and Signal, DIN Rail, 1000 VAC, ENTRELEC SNK.

Technical specifications
Version feed through terminal
Number of terminals 1
Pin number 2 pole
Cable cross-section 35-120 mm²
AWG cross-section AWG 2 to 4/0
Rated surge voltage 8 kV
Rated current 232 A
Rated Voltage 1000 V
Degree of soiling 3
Length 80.1 mm
Width 26 mm
Height 87 mm
Connection screw connection
Colour gray
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
