1SNK516011R0000 | ENTRELEC

Terminal block, screw connection, 1.0-50 mm², 2 pole, 150 A, 8 kV, gray, 1SNK516011R0000

Order No.: 72P4445
MPN:
1SNK516011R0000

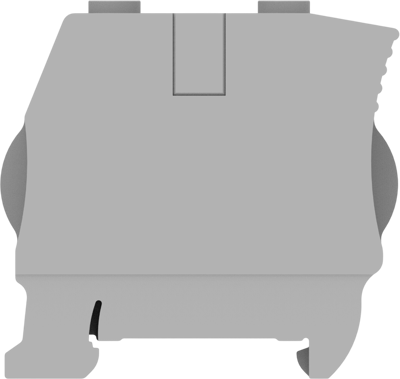

1SNK516011R0000 ENTRELEC Series Terminals Image 1

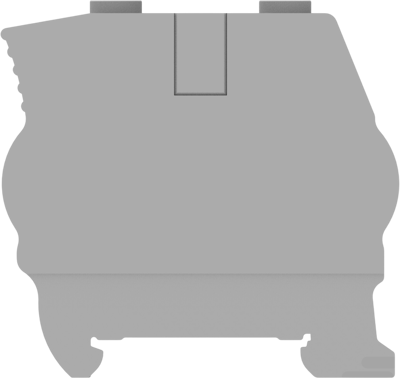

1SNK516011R0000 ENTRELEC Series Terminals Image 2

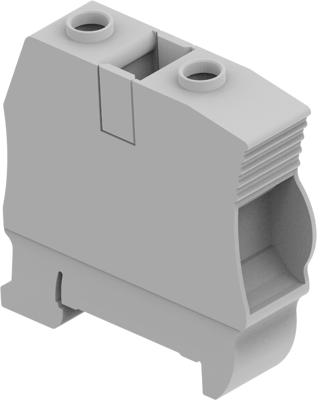

1SNK516011R0000 ENTRELEC Series Terminals Image 3

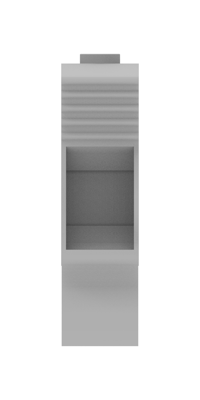

1SNK516011R0000 ENTRELEC Series Terminals Image 4

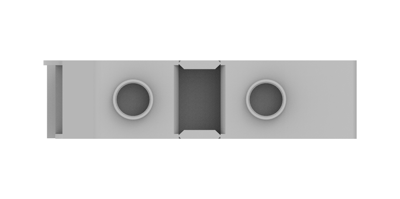

1SNK516011R0000 ENTRELEC Series Terminals Image 5
Image may differ
Unit Price (€ / pc.)
7.9373 € *
Standard delivery time from the manufacturer is: 34 Weeks
Total Price:
7.94 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9373 €
10 pcs.
7.4018 €
50 pcs.
6.9377 €
100 pcs.
6.5212 €
*incl. VAT plus shipping costs
Subject to prior sale

DIN Rail terminal block, 1SNK516011R0000, ENTRELEC

Screw Clamp Terminal Block, Feed-Through, Gray, 16 mm Spacing, 2 Position, Screw Terminal, Power and Signal, DIN Rail, 1000 VAC, ENTRELEC SNK.

Technical specifications
Version terminal block
Number of terminals 1
Pin number 2 pole
Cable cross-section 1.0-50 mm²
AWG cross-section AWG 18 to 0
Rated surge voltage 8 kV
Rated current 150 A
Rated Voltage 1000 V
Degree of soiling 3
Length 60.2 mm
Width 16 mm
Height 63.6 mm
Connection screw connection
Colour gray
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
