1SNK508411R0000 | ENTRELEC

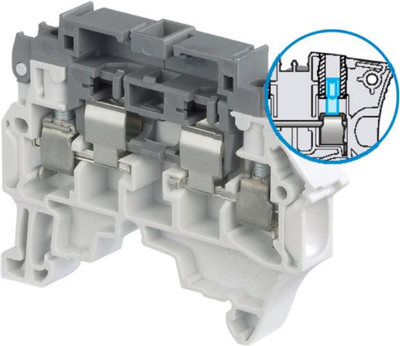

Fuse terminal, screw connection, 0.2-4.0 mm², 2 pole, 6.3 A, 8 kV, dark gray/gray, 1SNK508411R0000
Order No.: 72P4420
MPN:
1SNK508411R0000
Unit Price (€ / pc.)
14.6251 € *
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
14.63 € *
Price list
Quantity
Price per unit*
1 pcs.
14.6251 €
10 pcs.
13.5779 €
25 pcs.
12.6735 €
50 pcs.
11.5192 €
*incl. VAT plus shipping costs
Subject to prior sale
DIN Rail terminal block, 1SNK508411R0000, ENTRELEC
Screw Clamp Terminal Block, Fuse, Gray & Dark Gray, 8 mm Spacing, 2 Position, Screw Terminal, Power und Signal, DIN Rail, ENTRELEC SNK.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 2 pole | |
| Cable cross-section | 0.2-4.0 mm² | |
| Colour | dark gray/gray | |
| Rated current | 6.3 A | |
| Number of terminals | 1 | |
| Connection | screw connection | |
| Height | 59.7 mm | |
| AWG cross-section | AWG 24 to 10 | |
| Rated surge voltage | 8 kV | |
| Length | 45.6 mm | |
| Rated Voltage | 630 V | |
| Version | fuse terminal |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
