1SNK505313R0000 | ENTRELEC

Feed through terminal, spring-clamp connection, 0.2-4.0 mm², 2 pole, 18 A, 6 kV, gray, 1SNK505313R0000

Order No.: 72P4409
MPN:
1SNK505313R0000

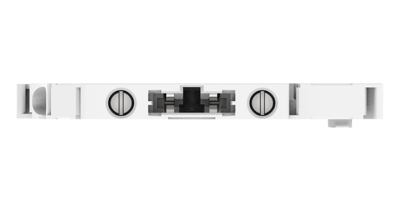

1SNK505313R0000 ENTRELEC Series Terminals Image 1

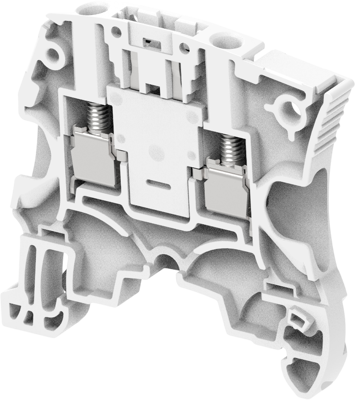

1SNK505313R0000 ENTRELEC Series Terminals Image 2

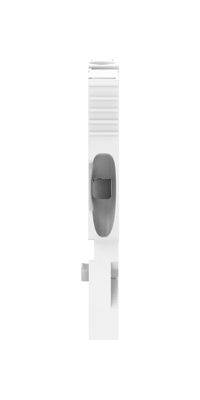

1SNK505313R0000 ENTRELEC Series Terminals Image 3

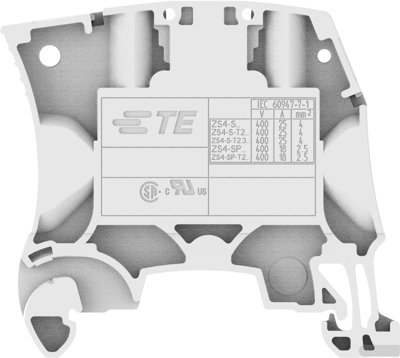

1SNK505313R0000 ENTRELEC Series Terminals Image 4

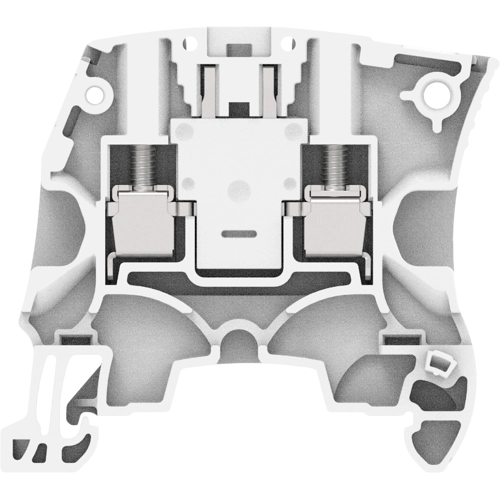

1SNK505313R0000 ENTRELEC Series Terminals Image 5
Image may differ
Unit Price (€ / pc.)
5.8429 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
5.84 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8429 €
10 pcs.
5.4502 €
50 pcs.
5.1051 €
100 pcs.
4.7957 €
*incl. VAT plus shipping costs
Subject to prior sale

DIN Rail terminal block, 1SNK505313R0000, ENTRELEC

Screw Clamp Terminal Block, Disconnect, Gray, 5.2 mm Spacing, 2 Position, DIN Rail, -55 - 110 °C, ENTRELEC SNK.

Technical specifications
Rated surge voltage 6 kV
Rated Voltage 400 V
AWG cross-section AWG 24 to 10
Length 47.3 mm
Colour gray
Connection spring-clamp connection
Cable cross-section 0.2-4.0 mm²
Rated current 18 A
Pin number 2 pole
Version feed through terminal
Number of terminals 1
Height 53 mm
Logistics
Customs tariff number 85369010
Country of origin PL
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
