1SNK505065R0000 | ENTRELEC

Feed through terminal, spring-clamp connection, 0.2-4.0 mm², 2 pole, 32 A, 8 kV, white, 1SNK505065R0000

Order No.: 72P4404
MPN:
1SNK505065R0000
1SNK505065R0000 ENTRELEC Series Terminals Image 1

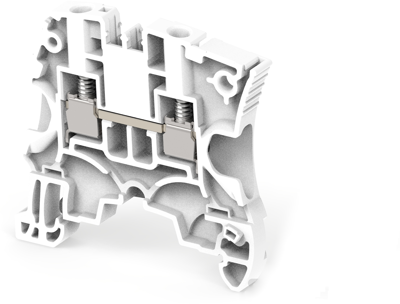

1SNK505065R0000 ENTRELEC Series Terminals Image 2

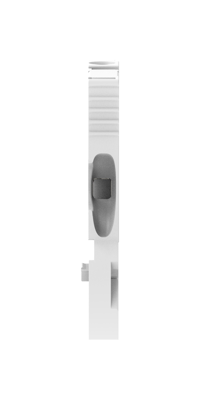

1SNK505065R0000 ENTRELEC Series Terminals Image 3

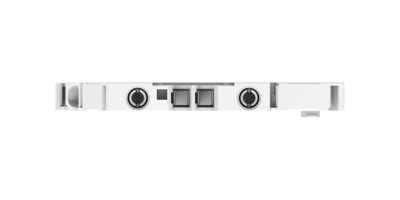

1SNK505065R0000 ENTRELEC Series Terminals Image 4

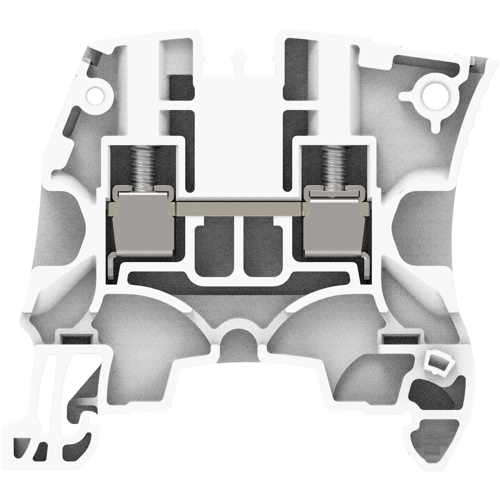

1SNK505065R0000 ENTRELEC Series Terminals Image 5
Image may differ
Unit Price (€ / pc.)
2.2610 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
2.26 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2610 €
10 pcs.
2.0944 €
50 pcs.
1.9516 €
100 pcs.
1.8207 €
*incl. VAT plus shipping costs
Subject to prior sale

DIN Rail terminal block, 1SNK505065R0000, ENTRELEC

Screw Clamp Terminal Block, Feed-Through, White, 5.2 mm Spacing, 2 Position, DIN Rail, -55 - 110 °C, ENTRELEC SNK.

Technical specifications
Pin number 2 pole
Version feed through terminal
AWG cross-section AWG 24 to 12
Cable cross-section 0.2-4.0 mm²
Rated Voltage 1000 V
Number of terminals 1
Connection spring-clamp connection
Height 53 mm
Rated surge voltage 8 kV
Length 47.3 mm
Colour white
Rated current 32 A
Logistics
Customs tariff number 85369010
Country of origin MA
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
