1SNA299684R0200 | ENTRELEC
Terminal block, screw connection, 0.22-4.0 mm², 7 pole, 32 A, 6 kV, gray, 1SNA299684R0200
Order No.: 72P4345
MPN:
1SNA299684R0200
Unit Price (€ / pc.)
19.2899 € *
Available in 5 Days: 550 pcs. - if ordered today
Total Price:
19.29 € *
Price list
Quantity
Price per unit*
1 pcs.
19.2899 €
10 pcs.
17.9095 €
25 pcs.
16.7195 €
50 pcs.
15.1963 €
*incl. VAT plus shipping costs
Subject to prior sale

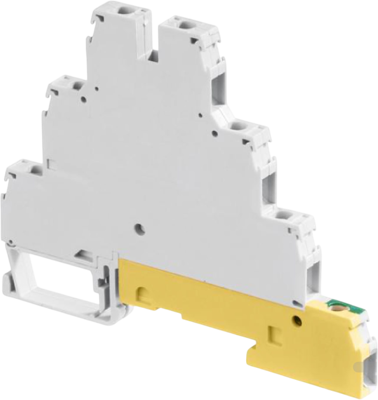

DIN rail terminal block, 1SNA299684R0200, ENTRELEC
Screw Clamp Terminal Block, Feed-Through and Ground, Gray, 6 mm Spacing, 6 Position, Screw Terminal, Signal, DIN Rail, 500 VAC, ENTRELEC SNA.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 90 mm | |
| Pin number | 7 pole | |
| Version | terminal block | |
| Colour | gray | |
| Width | 6 mm | |
| Rated current | 32 A | |
| Degree of soiling | 3 | |
| Rated Voltage | 500 V | |
| AWG cross-section | AWG 12 | |
| Connection | screw connection | |
| Rated surge voltage | 6 kV | |
| Cable cross-section | 0.22-4.0 mm² | |
| Length | 64.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
