1SNA115831R0400 | ENTRELEC
Terminal block, screw connection, 6.0 mm², 24 A, 6 kV, gray, 1SNA115831R0400
Order No.: 72P4816
MPN:
1SNA115831R0400
D6/8.ST1.RS.IP20
Unit Price (€ / pc.)
21.0392 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
21.04 € *
Price list
Quantity
Price per unit*
1 pcs.
21.0392 €
10 pcs.
19.7302 €
25 pcs.
18.5640 €
50 pcs.
17.5406 €
*incl. VAT plus shipping costs
Subject to prior sale

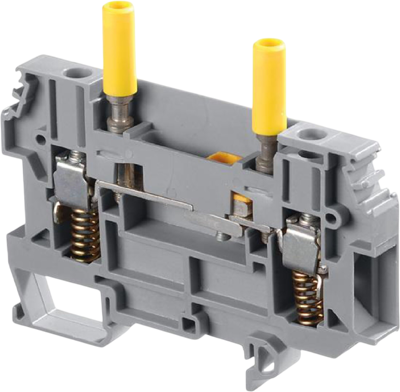

Terminal block, 1SNA115831R0400, ENTRELEC
Spring Loaded Screw Clamp Terminal Block, Test disconnect with a screwdriver sliding link, Grey, Polyamide, Spacing: 8 mm. Mainly dedicated to energy markets for security purposes on CT circuits, Security: specific shape in linking bar to lock the ferrule, Spring clamp can maintain contact pressure even if screw clamp is loose.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 63.4 mm | |
| Rated current | 24 A | |
| Height | 85.6 mm | |
| Colour | gray | |
| Rated surge voltage | 6 kV | |
| Width | 8 mm | |
| Degree of soiling | 3 | |
| Connection | screw connection | |
| Version | terminal block | |
| Rated Voltage | 400 V | |
| Cable cross-section | 6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | MA |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
