1SNL407611R0000 | ENTRELEC

Name: Terminal block, 1 pole, 1.5-25 mm², AWG 16-4, 76 A, 1000 V, screw connection, 1SNL407611R0000
Brand: ENTRELEC
SKU: 72P4776
Availability: InStock

Terminal block, 1 pole, 1.5-25 mm², AWG 16-4, 76 A, 1000 V, screw connection, 1SNL407611R0000

Order No.: 72P4776

MPN:

1SNL407611R0000

Series: DBLK

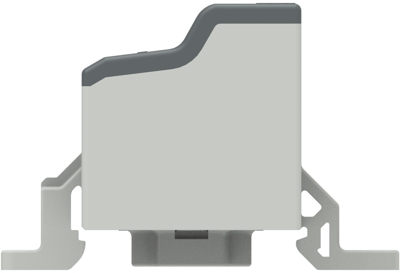

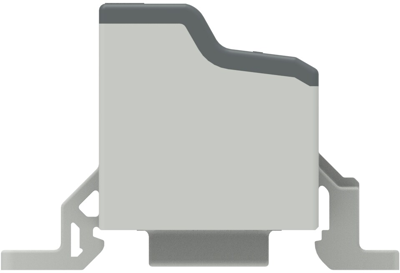

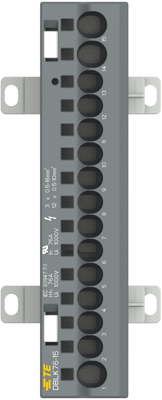

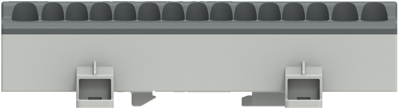

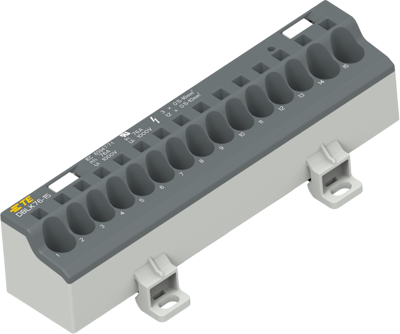

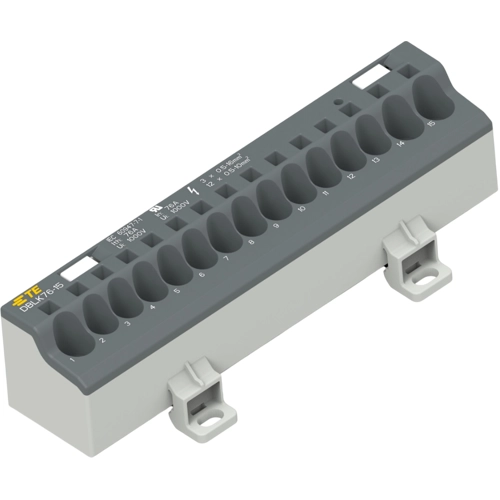

1SNL407611R0000 ENTRELEC Connecting Blocks Image 2

1SNL407611R0000 ENTRELEC Connecting Blocks Image 3

1SNL407611R0000 ENTRELEC Connecting Blocks Image 4

1SNL407611R0000 ENTRELEC Connecting Blocks Image 5

Image may differ

Key Specification:

Version power distribution block

Pin number 1 pole

Cable cross-section 1.5-25 mm²

AWG cross-section AWG 16-4

Download Datasheet Technical specifications

Unit Price (€ / pc.)

26.3823 € *

Available in 5 Days: 50 pcs. - if ordered today

Total Price:

26.38 € *

Price list

Quantity

Price per unit*

1 pcs.

26.3823 €

2 pcs.

24.6806 €

5 pcs.

23.1812 €

10 pcs.

21.5509 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Power Distribution Block, 1SNL407611R0000, ENTRELEC

1 Pole, 76 A Current Rating (UL), 15 Position, DIN Rail, -55 - 110 °C, Power Distribution Blocks.

Technical specifications

Filter	Property	Value
	AWG cross-section	AWG 16-4
	Rated voltage	1000 V
	Cable cross-section	1.5-25 mm²
	Version	power distribution block
	Contact connection	screw connection
	Pin number	1 pole
	Rated current	76 A
