1SNF536011R0000 | ENTRELEC

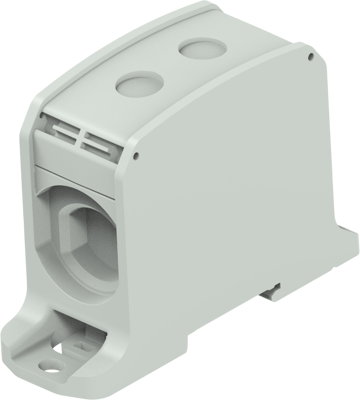

Terminal block, 1 pole, 35-150 mm², 353 A, 1000 V, screw connection, 1SNF536011R0000
Unit Price (€ / pc.)
53.4072 € *
Available in 5 Days: 312 pcs. - if ordered today
Total Price:
53.41 € *
Price list
Quantity
Price per unit*
1 pcs.
53.4072 €
2 pcs.
49.9562 €
5 pcs.
46.9336 €
10 pcs.
43.6254 €
*incl. VAT plus shipping costs
Subject to prior sale
Power Distribution Block, 1SNF536011R0000, ENTRELEC
1 Pole, 250 A / 310 A Current Rating (UL), 2 Position, DIN Rail, Power Distribution Blocks.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 1000 V | |
| Cable cross-section | 35-150 mm² | |
| Version | power distribution block | |
| Contact connection | screw connection | |
| Pin number | 1 pole | |
| Rated current | 353 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
