NLZ61NP-UC | Eltako

Time relay, 0 to 12 min, delayed switch-off, 1 Form A (N/O), 8-230 V, 10 A/250 VAC, NLZ61NP-UC

Order No.: 27G535
EAN: 4010312603048
MPN:
NLZ61NP-UC

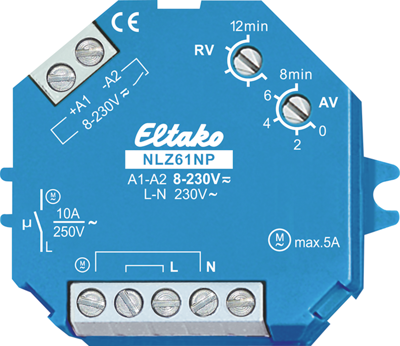

NLZ61NP-UC Eltako Time Relays
Image may differ
Unit Price (€ / pc.)
56.7987 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
56.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
56.7987 €

All-or-nothing relays with off delay and universal control voltage, type Eltako NLZ61NP.

For panel and surface mounting, with bistable relay as front contact and very low switching noise, adjustable off delay and response delay up to 720 s; Contacts: 1 NO, not electrically isolated. Stand-by loss: 0.5 W. Universal control voltage: 8.0 to 230 V AC/DC Rated breaking capacity: 10 A/250 VAC. Test voltage control connections/contact: 2000 V. Filament and halogen lamp load 230 V: 2000 W. Luminescent tube load in DUO circuit: 1000 VA, duty cycle: 100%. Ambient temperature: –20 to +50 °C. Standards: EN 61000-6-3, EN 61000-6-1 and EN 60669. Dimensions: L 45, W 55, D 18 mm.

Type: NLZ61NP-8..230V UC, all-or-nothing relay with off delay

Technical specifications
Time display 0 to 12 min
Function delayed switch-off
Contact type 1 Form A (N/O)
Voltage 8-230 V
Breaking capacity 10 A/250 VAC
Connection screw connection
Logistics
Country of origin DE
Customs tariff number 85364900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
