NR12-001-3X230V | Eltako
Line voltage monitoring relay, 1 Form C (NO/NC), 250 V (AC), 10 A, 230 V (DC), 250 V (AC), NR12-001-3X230V
NCNR (non cancelable / non returnable)

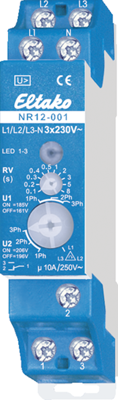

Line monitoring relays, type Eltako NR12.
For in-line installation on DIN rails, for monitoring the 230 VAC voltage between 1 to 3 outer conductors and neutral conductor, as well as of the phase sequence in rotary selector switch positions 2 Ph and 3 Ph, with LED display of correct input voltage; Contact: 1 x CO, electrically isolated. Rated breaking capacity: 10 A/250 VAC. Stand-by losses: 0.8 W. U1: 161 V release voltage and 185 V pick-up voltage. U2: 196 V release voltage and 206 V pick-up voltage. Duty cycle: 100%. Incandescent/ halogen lamp load on 230 V: 1600 W. Fluorescent lamp load, DUO circuit: 1600 VA. Ambient temperatures: –20 to +50 °C. Standards: EN 61000-6-3, EN 61000-6-1 and EN 60669. Dimensions: W 18, D 58 mm.
Type: NR12-001-3x230V, line monitoring relay
| Filter | Property | Value |
|---|---|---|
| Contact type | 1 Form C (NO/NC) | |
| switching current | 10 A | |
| Coil voltage (AC) | 250 V | |
| Switching Voltage (DC) | 230 V | |
| Switching Voltage (AC) | 250 V | |
| Breaking capacity | 250 VA | |
| Connection | screw connection |
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364900 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
