AR12DX-230V | Eltako
Monitoring relays, current base 0.1-3.2, multiplier xA 1-10, release delay 0-120 seconds, 1 Form C (NO/NC), 230 V (AC), 16 A, 250 V (AC), AR12DX-230V
Order No.: 27G369
EAN: 4010312205426
MPN:
AR12DX-230V
Unit Price (€ / pc.)
59.8094 € *
Standard delivery time from the manufacturer is: 5 Weeks

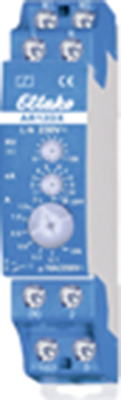

Current relays, type Eltako AR12DX.
For series installation on DIN rail, internal toroidal core transformer and LED status display; Contact: 1 x CO, electrically isolated. Rated breaking capacity: 16 A/250 VAC. Standby losses: 0.8 W. Duty cycle: 100 %, filament and halogen lamp load 230 V (lamps with max. 150 W): 2300 W. fluorescent lamp load, with ballast in DUO circuit, or without ballast: 1000 VA. Ambient temperatures: –20 to +50 °C. Standards: EN 61000-6-3, EN 61000-6-1 and EN 60699. Dimensions: W 18, D 58 mm.
Type: AR12DX-230V, current relay
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | current base 0.1-3.2, multiplier xA 1-10, release delay 0-120 seconds | |
| Contact type | 1 Form C (NO/NC) | |
| switching current | 16 A | |
| Coil voltage (AC) | 230 V | |
| Switching Voltage (AC) | 250 V | |
| Breaking capacity | 1000 VA | |
| Connection | screw connection | |
| Contact material | AgSnO |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
