KR09-24VUC | Eltako

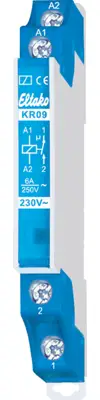

Coupling relay 1 Form A (N/O), 24 V (DC), 24 V (AC), 6 A, KR09-24VUC
Order No.: 27G362
EAN: 4010312203385
MPN:
KR09-24VUC
Unit Price (€ / pc.)
37.7349 € *
Standard delivery time from the manufacturer is: 1 Week
Coupler relays, type Eltako KR09.
For in-line installation DIN rails, with LED activation display, no stand-by losses; Contacts: 1 NO, electrically isolated. Rated breaking capacity: 6.0 A/250 VAC. Duty cycle: 100 %, test voltage control terminals/contact: 4000 V. Incandescent/ halogen lamp load on 230 V: 500 W. Fluorescent lamp load, DUO circuit: 600 VA. Ambient temperatures: –20 to +50 °C. Standards: EN 61000-6-3, EN 61000-6-1 and EN 60669. Dimensions: W 9.0, D 55 mm.
Technical attributes (type, control voltage): KR09-24V UC, 24 V AC/DC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Status display | LED | |
| Coil voltage (DC) | 24 V | |
| Connection | screw connection | |
| Contact material | AgSnO2 | |
| Coil voltage (AC) | 24 V | |
| Product type | coupling relay | |
| Contact type | 1 Form A (N/O) | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
