KR09-12VUC | Eltako
Coupling relay 1 Form A (N/O), 12 V (DC), 12 V (AC), 6 A, KR09-12VUC
Order No.: 27G360
EAN: 4010312203415
MPN:
KR09-12VUC
Unit Price (€ / pc.)
40.7813 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
40.78 € *
Price list
Quantity
Price per unit*
1 pcs.
40.7813 €
10 pcs.
35.5334 €
*incl. VAT plus shipping costs
**Subject to prior sale

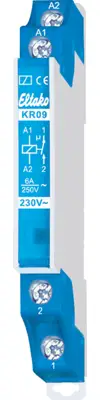

Coupler relays, type Eltako KR09.
For in-line installation DIN rails, with LED activation display, no stand-by losses; Contacts: 1 NO, electrically isolated. Rated breaking capacity: 6.0 A/250 VAC. Duty cycle: 100 %, test voltage control terminals/contact: 4000 V. Incandescent/ halogen lamp load on 230 V: 500 W. Fluorescent lamp load, DUO circuit: 600 VA. Ambient temperatures: –20 to +50 °C. Standards: EN 61000-6-3, EN 61000-6-1 and EN 60669. Dimensions: W 9.0, D 55 mm.
Technical attributes (type, control voltage): KR09-12V UC, 12 V AC/DC
Technical specifications
| Connection | Schraubanschluss | |
| Version | Koppelrelais | |
| Contact type | 1 Schließer | |
| Contact material | AgSnO2 | |
| Rated current | 6 A | |
| Coil voltage (AC) | 12 V | |
| Coil voltage (DC) | 12 V | |
| Status display | LED |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
