122210 | Elobau
Magnet sensor, PA, built-in mounting M12, 1 Form A (N/O), 20 W, 48 V (DC), 1 A, 122210
Order No.: 29G431
MPN:
122210
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
28.3577 € *
Available: 48 pcs.
Next delivery: 1 pcs. on 2026-06-05
Total Price:
28.36 € *
Price list
Quantity
Price per unit*
1 pcs.
28.3577 €
10 pcs.
27.1320 €
25 pcs.
25.6445 €
50 pcs.
24.3117 €
*incl. VAT plus shipping costs
Subject to prior sale

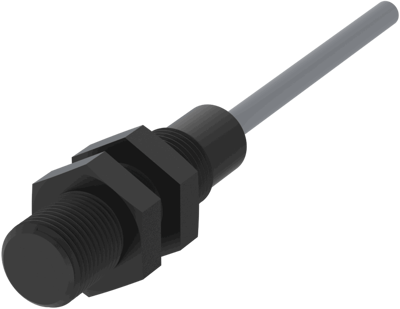

Magnetic sensor, 122210, Elobau
Magnetic sensor on reed-contact basis with small sensor design. Also simple mounting with external thread and fastening nuts.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | magnet sensor | |
| Version | PA | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 20 W | |
| Switching Voltage (DC) | 48 V | |
| Switching Voltage (AC) | 48 V | |
| switching current | 1 A | |
| Assembly | built-in mounting M12 | |
| Connection | cable, PVC, 1 m | |
| Degree of protection (IP) | IP67 | |
| Length | 46 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
