200010 | Elobau
Float switch, 3 bar, Ø 12 mm, PVC, 200010
Unit Price (€ / pc.)
45.9935 € *
Available: 13 pcs.
Total Price:
45.99 € *
Price list
Quantity
Price per unit*
1 pcs.
45.9935 €
10 pcs.
43.2327 €
25 pcs.
39.7698 €
50 pcs.
36.5687 €
*incl. VAT plus shipping costs
Subject to prior sale

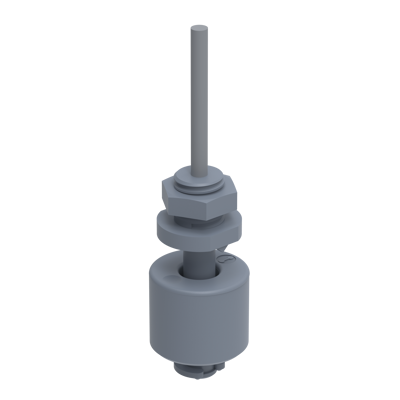

Float switch, 200010, Elobau
Miniature float switch with PG 7 thread is frequently used for level detection in medical applications. The compact design and reliable measurement also make this float switch ideal for use in water processing plants or tanks. The miniature float switch is a cost-effective solution that can be fully customised to suit your needs, and is reversible by rotating the float.
Features
- Level measurement on reed-contact basis
- With lock nut for easy installation
- One switching point as standard
- IP67 protection class
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pressure | 3 bar | |
| Shell Material | PVC | |
| diameter | 12 mm | |
| Degree of protection (IP) | IP67 | |
| Switching Voltage (AC) | 48 V | |
| Switching Voltage (DC) | 48 V | |
| Product type | float switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90262020 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
