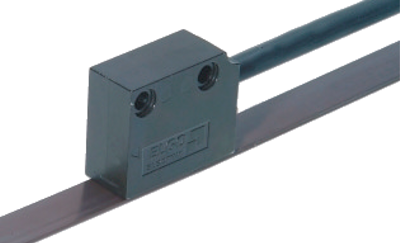

LMIX2-000-05.0-1-00, distance measuring system
with index pulse, integrated electronic evaluation system in the sensor, square-wave signal output proportional to velocity. Resolution LMIX2 with four edge sensing: 0.025 mm/0.01 mm (LMIX2 with single edge sensing: 0.1 mm). Distance sensor/strip: max. 2.0 mm. Output current: max. 20 mA per channel, index pulse at type LMIX2 at intervals of 5.0 mm (period depends on traversing velocity). Supply/output voltage: 10 to 30 VDC, tolerance/supply voltage: stabilized, residual ripple max. 5.0 %. Current consumption: max. 150 mA. Output frequency (per channel): 40 kHz. Traversing velocity: max. 4.0 m/s. Signal cable length: 5.0 m (max. 30 m). Case: zinc die-cast. Degree of protection: IP 67. Operating temperatures: 0 to +50 °C.
