2212082-1 | ELCON
Socket housing, 40 pole, pitch 3.3 mm, straight, black, 2212082-1
Order No.: 71P5613
EAN: 4099891726874
MPN:
2212082-1
Unit Price (€ / pc.)
65.8665 € *
Available in 5 Days: 31 pcs. - if ordered today
Total Price:
263.47 € *
Price list
Quantity
Price per unit*
4 pcs.
65.8665 €
7 pcs.
64.6527 €
*incl. VAT plus shipping costs
Subject to prior sale

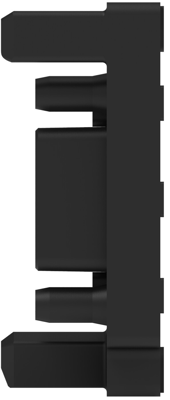

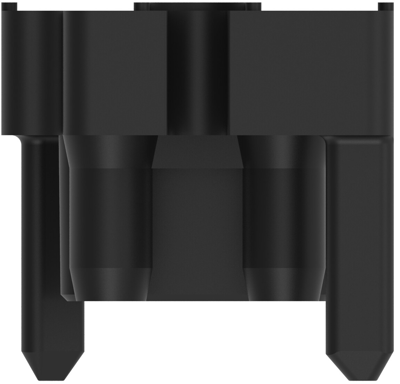

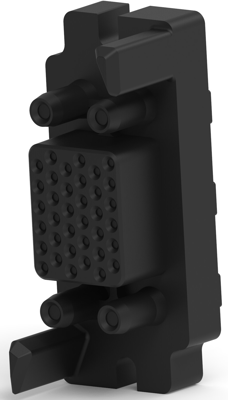

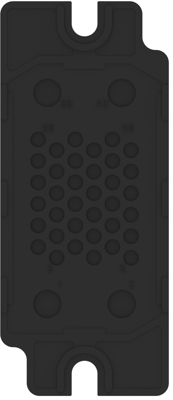

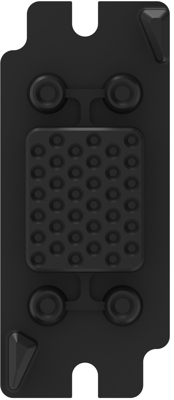

Socket housing, 2212082-1, ELCON
Rectangular power connector, Connector assembly, Housing for female terminals, Board-to-Board, 40 Position.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.3 mm | |
| Connection | solder connection | |
| Version | socket housing | |
| Orientation | straight | |
| Pin number | 40 pole | |
| Additional parts | equipped | |
| Connection plating | gold-plated | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Number of rows | 6 | |
| Colour | black | |
| Rated current | 25 A | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
