1648206-1 | ELCON

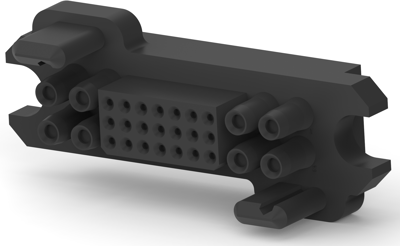

Socket header, 29 pole, pitch 3.81 mm, straight, black, 1648206-1
Order No.: 36P8813
EAN: 4099889949018
MPN:
1648206-1
298-08-01100
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
12.4236 € *
Standard delivery time from the manufacturer is: 14 Weeks
PCB Connection System, 1648206-1, TE Connectivity
Wire-to-Wire, Wire & Cable, 29 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Female
- Housing Material: Thermoplastic
- Housing Color: black
- Number of positions: 29
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 3.81 mm
- Row-to-Row Spacing: 3.81 mm [0.15 in]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket housing | |
| Contact type | socket | |
| Pin number | 29 pole | |
| Grid | 3.81 mm | |
| Connection | crimp connection | |
| Orientation | straight | |
| Rated voltage | 150 V | |
| Rated current | 35 A | |
| Additional parts | unequipped | |
| Number of rows | 3 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
