1648325-1 | ELCON
Receptacle, 0.205-0.518 mm², AWG 24-20, crimp connection, 1648325-1
Order No.: 36P8715
EAN: 4099889648126
MPN:
1648325-1
702-92-01109
Unit Price (€ / pc.)
2.0825 € *
Available in 5 Days: 14,165 pcs. - if ordered today

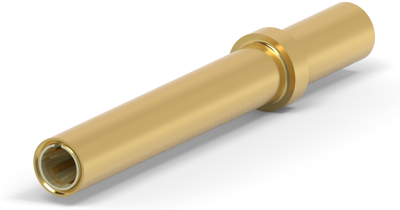

Socket contact, 1648325-1, Elcon
Power Contact Type: Contact, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 5 A, Contact Type: Socket, Contact Retention Within Housing: Without, Mating Pin Diameter: 1.02 mm, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: Without, Wire Size: 24 – 20 AWG, Wire Size: 0.205 – 0.518 mm², Wire Size: 404 – 1021 CMA, Operating Temperature Range: -40 – 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-20 | |
| Contact material | copper alloy | |
| Cable cross-section | 0.205-0.518 mm² | |
| Insulation diameter | 0.077-0.102 mm | |
| Contact surface mating area | gold-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
