GF 467AF | ELC

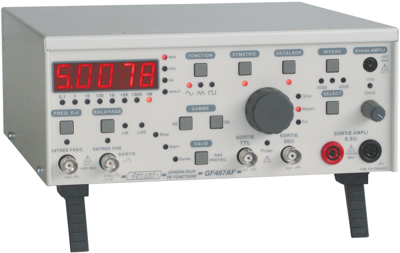

Functions Generator 0.01hz to 5Mhz, GF 467AF
Order No.: 24K9048
EAN: 3760244880475
MPN:
GF 467AF
GF467AF
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
541.45 € *
Standard delivery time from the manufacturer is: 12 Weeks
Analog function generator with output 15W. Interfaces : RS232, (USB or LAN)*, LabView + output 15W. Frequency range : 0,01 Hz to 5 MHz. 0,5 Ohms protected output delivering 15 W under 4 Ohms. (Protected against short circuit) Very high sine quality. 50 ohms and TTL outputs protected up to ±60 V. Internal or external reciprocal frequency counter 50 MHz.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Frequency range | 0.01 Hz-5 MHz | |
| Waveforms | sinus, square, ramp, noise, arbitrary waveform | |
| Display | LCD | |
| Interfaces | USB |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85432000 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
