ALR3003 | ELC
Laboratory power supply, 30 VDC, outputs: 1 (3 A), 0 to 3 A, 90 W, 207-253 VAC, ALR3003
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
238.00 € *
Standard delivery time from the manufacturer is: 12 Weeks

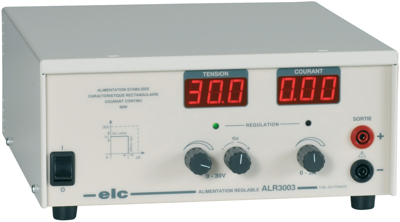

Adjustable power supply unit, ALR3003, ELC
Adjustable power supply elc ALR3003, 0 - 30 V, 0 - 3 A, 90 W
Features
- Stabilized power supply unit with single output and digital display.
- Dual digital display of voltage and current.
- Fast and accurate voltage adjustment using the two potentiometers.
- Current can be adjusted from 0 - 3 A.
- Automatic operation with constant voltage or constant current.
- Automatic operation with constant voltage or constant current.
- Protection against short-circuits.
- Low noise operation : Controlled low-noise ventilation.
Applications
- Messtechnik, Industrie, Power-Management, Schulen, labor, Wartung & Reparatur
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 30 VDC | |
| Output current | 3 A | |
| Range of Output Currence | 0 to 3 A | |
| Power | 90 W | |
| Input voltage AC | 207-253 VAC | |
| Number of outputs | 1 | |
| Width | 218 mm | |
| Height | 90 mm | |
| Depth | 238 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 90308900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
