AL 936N | ELC

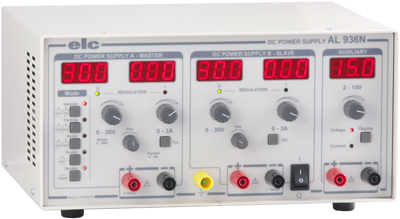

Adjustable power supply unit, AL 936N, ELC

Adjustable power supply elc AL936N, 2 x (0 - 30 V, 0 - 3 A), 1-15V 3A 200 W, triple output

Features

• Automatic mode selection: Independent, tracking and serial, parallel
• 2 x 0-30V 0-3A or 0-60V 0-3A or 0-30V 0-6A or +/- 0-30V 0-3A
• 1-15 V 3A (15W Max.)
• Digital display of voltage and current.
• Changeable third channel with digital display of U or I.
• Automatic switch-off at each configuration change of the controlling or controlled channels.
• Button for automatic mode selection: Independent, tracking and serial and parallel.
• Load independent adjustment of the short circuit current.
• Short circuit protection by current regulation.
• Overtemperature protection by temperature-controlled fan, thermal overload switch and relay.
• Transformer with primary overcurrent protection by fuse.
• Quiet, temperature-controlled fan cooling.
• Toroidal isolating transformer.

Applications

• Messtechnik, Industrie, Power-Management, Schulen, labor, Wartung & Reparatur
